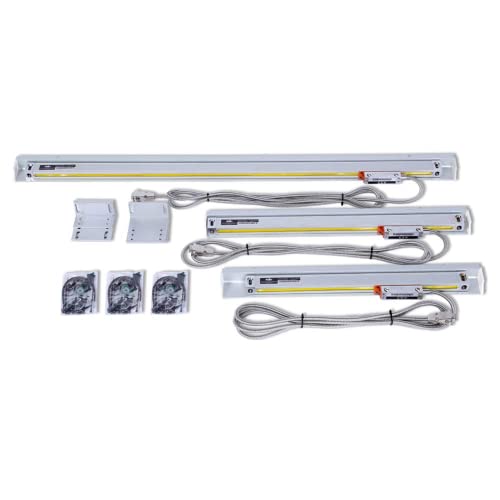

HXX 5um High Precision Lathe Linear Scale - Electronic Linear Encoder for CNC Milling Machines & Lathes (1pc) - Perfect for Precision Machining, Metalworking & Industrial Automation
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:17 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:33786992
Product Description
Features: Resolution :10μm/0.5μm/1μm /5μm Reading Head Sliding System Vertical Five Bearing If you need other Resolutions and DRO, just contact us, we can offer you all kinds of goods. Specification: Accuracy:+/-5μm(5 μ ),+/-10μm(10 μ ) Cable Length：3M /Other(contact us) IP Protection Class: IP54 Output Signal:TTL/RS422 Power Supply：5V、24V（Optional） Signal Convey Cycle:20μm Zero position：（Optional） Reaction Speed:60m/min(0.005mm) 25m/min(0.001mm) L=Lo+100mm+19*2mm L:Overall Length Lo=Travel length/Stroke Normal Size : 21*33m Slim Size: 20*29mm Large Size: 27*43mm (width*height) Large Size :Lo >1000mm Normal Size:300mm≤ Lo<1000mm Slim Size:Lo<300mm Package: 1×linear scale 1×Set of linear scale accessories
Product Features
▲HIGH QUALITY: Aluminum alloy spray appearance ,waterproof, dustproof and wear-resistant, anti-interference fine ,long service life
▲GOOD FEATURE: The high precision linear scales is specially designed, precision, high speed, stable and accurate
▲APPLICATION: Widely used, capacity of resisting disturbance well. The digital readout is applicable for the machine such as millers, lathes, boring machines, grinding machines and EDM, etc.
▲EASY TO USE: It is easy to install and maintain, With 2 sets of mounting holes in adjacent planes, the scale is easier to mount in difficult mounting positions
▲SATISFACTION SERVICE: 1-Year Warranty（Quality assurance）. We will try our best to give our customers the best shopping experience
